Airflow Mode Main Link Installation

  1. Align the airflow mode main link and the airflow mode sub link projection as shown in the figure.
    G11430213Courtesy of MAZDA MOTORS CORP.

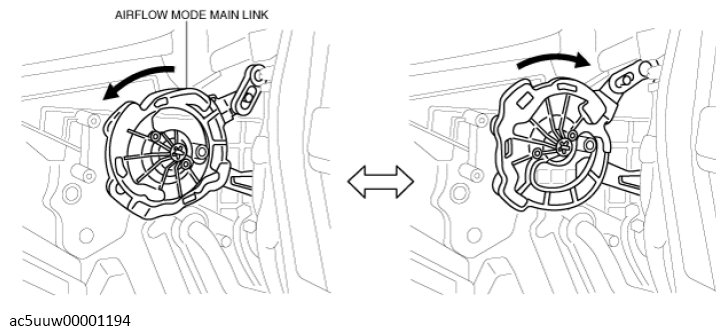

  2. When lightly pressing the airflow main link to rotate it in the direction of the arrow, verify that the airflow mode door switches to the position for each mode.
    G13113310Courtesy of MAZDA MOTORS CORP.

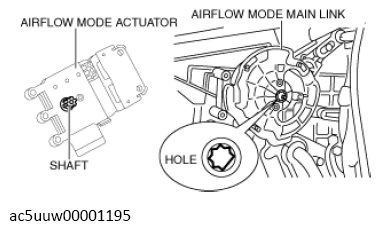

  3. Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft, and install while holding the airflow mode main link.
    G13113311Courtesy of MAZDA MOTORS CORP.
  4. Install the airflow mode actuator.
    G11430216Courtesy of MAZDA MOTORS CORP.
  5. Install the screws.
  6. Connect the connector.
  7. Install the following parts:
    1. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  8. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
