Blower Fan Controller Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the blower fan controller connector.
    G12233457Courtesy of MAZDA MOTORS CORP.

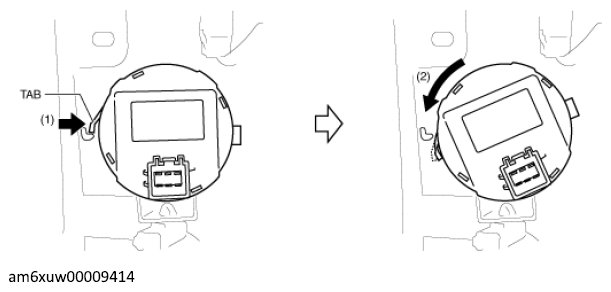

  4. Rotate the blower fan controller (2) while pressing the tab (1).
    G12233458Courtesy of MAZDA MOTORS CORP.

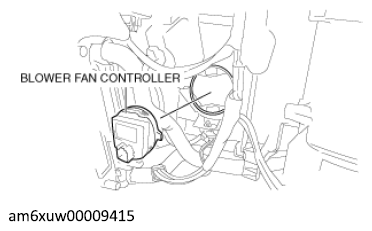

  5. Remove the blower fan controller.
    G12233459Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
