Liftgate Opener Switch Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Liftgate opener switch. (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)

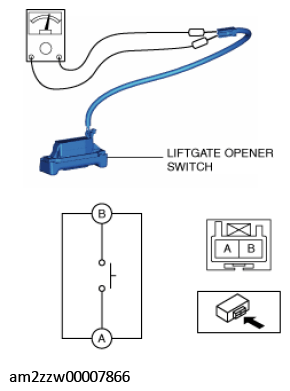

  3. Verify the continuity of liftgate opener switch terminals A and B.
    G11472722Courtesy of MAZDA MOTORS CORP.
    G11472723Courtesy of MAZDA MOTORS CORP.
