Indicator Unit Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
2. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
4. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
6. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
8. CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
10. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
11. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
12. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
13. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
14. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
15. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
16. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
17. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
18. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
19. Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION .)

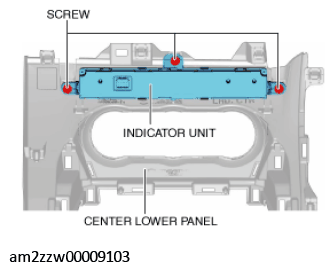

Remove the screw.

Courtesy of MAZDA MOTORS CORP.
Remove the indicator unit.
Install in the reverse order of removal.
