Cooling System Location Index

Courtesy of MAZDA MOTORS CORP.

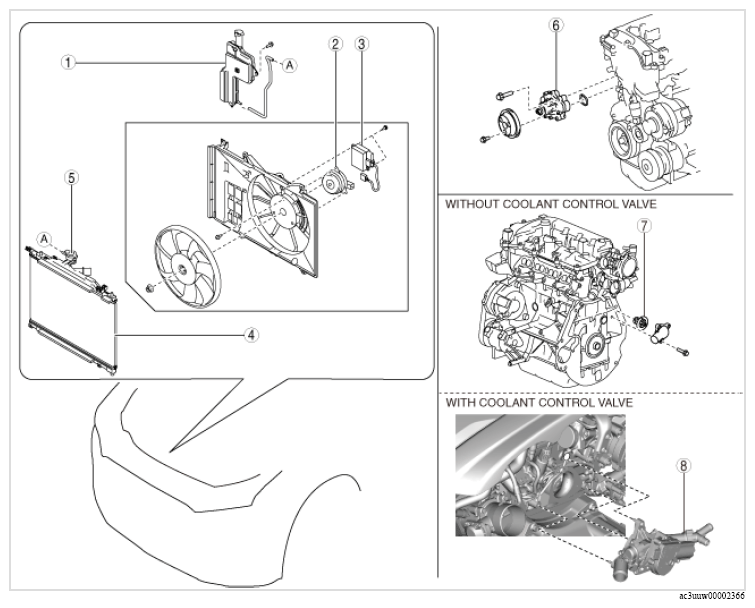

COMPONENT DESCRIPTION

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G 2.0] .) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
2	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.0] .)
3	Fan control module (See FAN CONTROL MODULE INSPECTION [SKYACTIV-G 2.0] .) (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2 0] .)
4	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G 2.0] .) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0] .) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0] .) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
5	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G 2.0] .)
6	Water pump (See WATER PUMP REMOVAL/INSTALLATION .)
7	Thermostat (Without coolant control valve) (See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See THERMOSTAT INSPECTION [SKYACTIV-G 2.0] .)
8	Coolant control valve (With coolant control valve) (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G 2.0] .)
