DTC P0196-00: Engine Oil Temperature Sensor Circuit Range/Performance Problem
>>
System Wiring Diagram
>>
Function Explanation (DTC Detection Outline)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

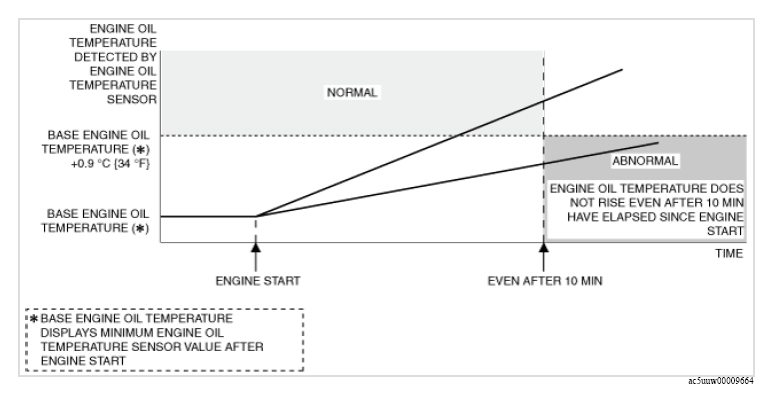

Function Explanation (DTC Detection Outline)
If the engine oil temperature detected by the engine oil temperature sensor is not rising 0.9°C {34°F} or more during a 10 min period after the engine is started, the PCM determines an engine oil temperature sensor malfunction and stores a DTC.
Courtesy of MAZDA MOTORS CORP.
