Wire removal note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the figure.

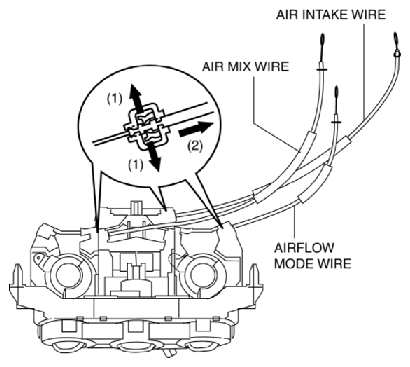

Fig 1: Removing Wires From Climate Control Unit - Recirculate/Fresh Lever Type
G10910340Courtesy of MAZDA MOTORS CORP.


  1. Remove in the order indicated in the figure.

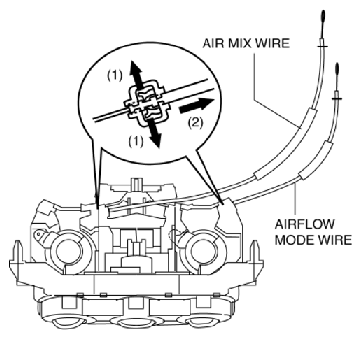

Fig 1: Removing Wires From Climate Control Unit - Recirculate/Fresh Switch Type
G10910342Courtesy of MAZDA MOTORS CORP.
