Active Driving Display Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not force to pull out/insert the wiring harness end without pushing the tabs, or the wiring harness end hook (s) will be damaged. If the hooks are damaged, it will cause loose and/or oblique fit of the wiring harness end leading to the ADD being inoperative.

Fig 1: Caution For Pushing Tabs

Courtesy of MAZDA MOTORS CORP.

NOTE:

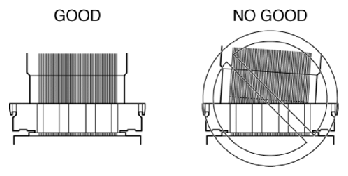

Verify that the wiring harness end is inserted straight and securely locked in the position as shown in figure.

Fig 2: Caution For Securing Wiring Harness End

Courtesy of MAZDA MOTORS CORP.
