Brush Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

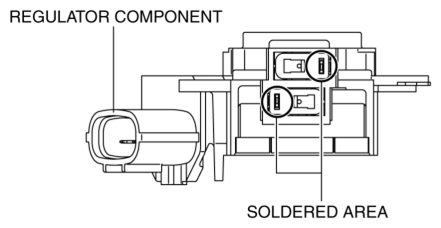

Fig 1: Caution For Melting Solder

Courtesy of MAZDA MOTORS CORP.

Press the brush into the regulator component with it facing in the direction shown in the figure.

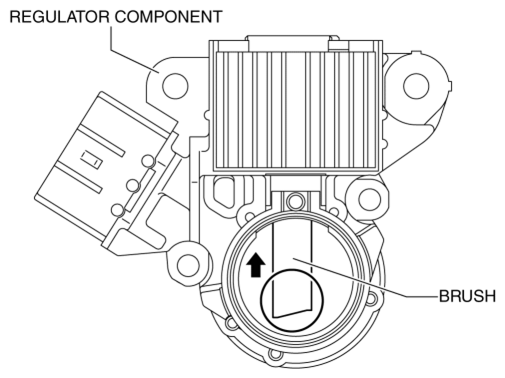

Fig 2: Pressing Brush Into Regulator Component
Courtesy of MAZDA MOTORS CORP.
Solder the brush to the regulator component.
