Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Slide the seat rearward (RH).
Remove the fasteners.

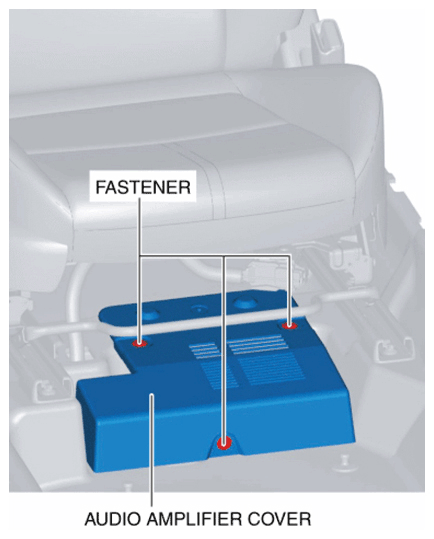

Fig 1: Removing Audio Amplifier Fasteners
Courtesy of MAZDA
Remove the audio amplifier cover.
Remove the bolts.

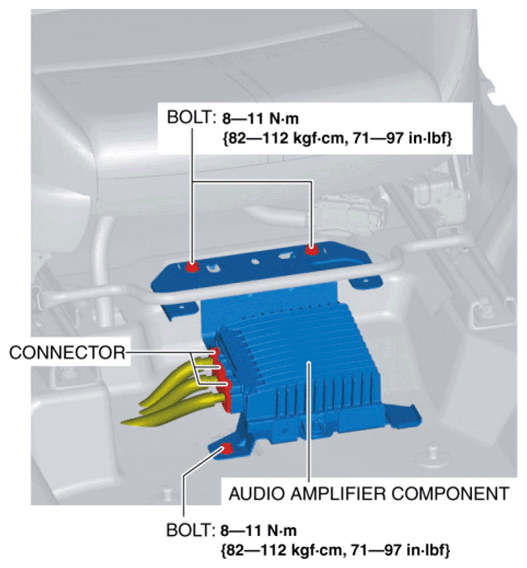

Fig 2: Removing Audio Amplifier Component Bolts
Courtesy of MAZDA
Disconnect the connectors.
Remove the audio amplifier component.
Remove the nuts.

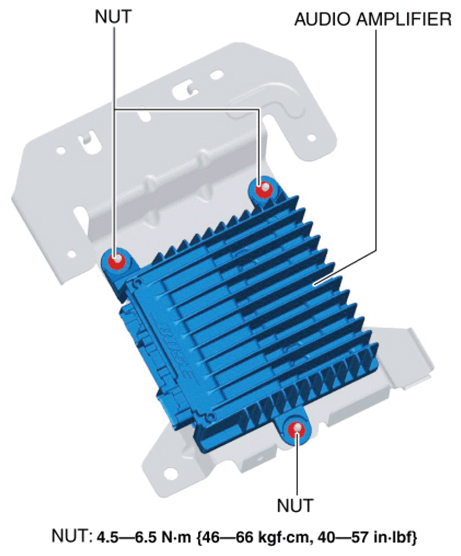

Fig 3: Removing Audio Amplifier Nuts
Courtesy of MAZDA
Remove the audio amplifier.
Install in the reverse order of removal.
