Tweeter Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the tweeter. (Refer to TWEETER REMOVAL/INSTALLATION .)
CAUTION:
- Because the tweeter is built into the condenser, if the tester does not contact the measurement area shown in the figure, the correct resistance cannot be measured.
Inspect the resistance between tweeter terminal A and the measurement area shown in the figure.
Tweeter resistance
- Without Bose®: 3.4-4.6 ohms
- With Bose®: approx. 3.6 ohms

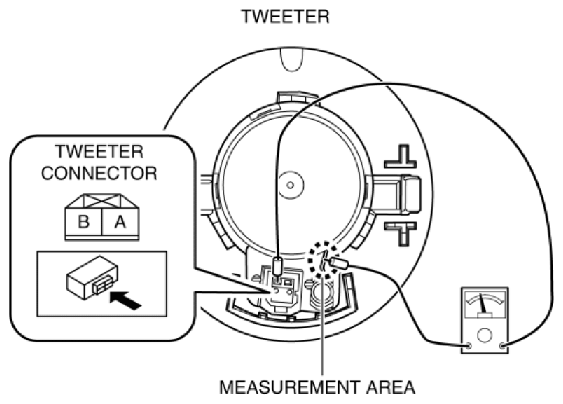

  Fig 1: Inspecting Resistance Between Tweeter Terminal A And Measurement Area
  Courtesy of MAZDA
- If not within the specification, replace the tweeter. (Refer to TWEETER REMOVAL/INSTALLATION .)
