Driver's Side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Cover the shaded area shown in the figure with a cloth.

Fig 1: Identifying Tweeter Cover Shaded Area
Courtesy of MAZDA
CAUTION:
- Always cover with a cloth to perform the procedure when detaching the tweeter tabs from the dashboard. Otherwise, the tweeter could dislodge and the tweeter or dashboard could be damaged.
While pressing the tweeter tab in the direction of arrow (1) shown in the figure from the inside of the dashboard, press out the tweeter in the direction of arrow (2) and detach the tweeter tab from the dashboard.

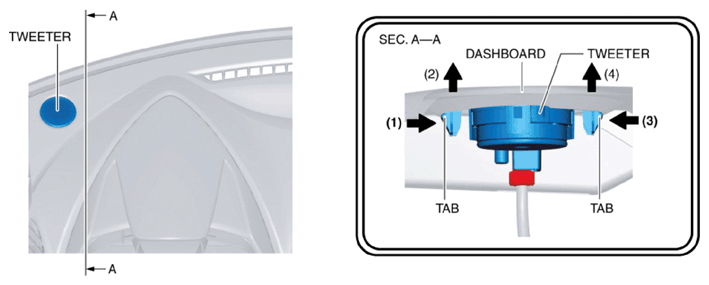

Fig 2: Detaching Tweeter Tab From Dashboard
Courtesy of MAZDA
While pressing the tweeter tab in the direction of arrow (3) shown in the figure from the inside of the dashboard, press out the tweeter in the direction of arrow (4) and detach the tweeter tab from the dashboard.
Disconnect the connector.

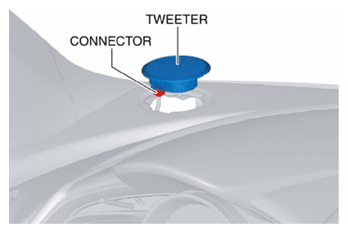

Fig 3: Identifying Tweeter Connector
Courtesy of MAZDA
Remove the tweeter.
Install in the reverse order of removal.
