Front outer handle bracket installation note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

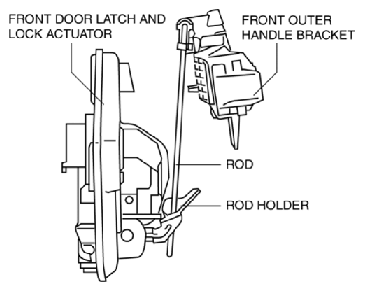

Fig 1: Installing Front Outer Handle Bracket

Courtesy of MAZDA MOTORS CORP.
