Nut Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily tighten the nuts A and B.

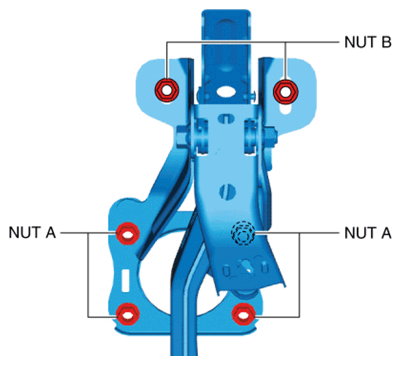

    Fig 1: Identifying Brake Pedal Nuts
    G10909656Courtesy of MAZDA MOTORS CORP.
  2. Tighten the nuts A to the specified torque.
  3. Tighten the nuts B to the specified torque.
