Pre-inspection preparation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake pipe from the front brake hose (LH).

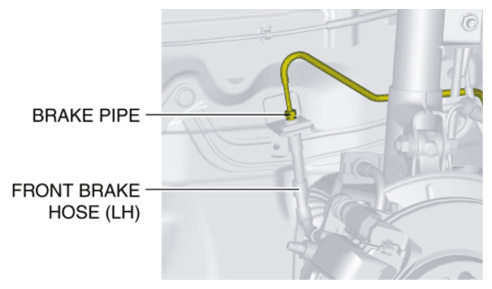

    Fig 1: Identifying Front Brake Hose (LH) Brake Pipe
    G10909664Courtesy of MAZDA MOTORS CORP.
  2. Install the SSTs  to the brake pipe as shown in the figure.

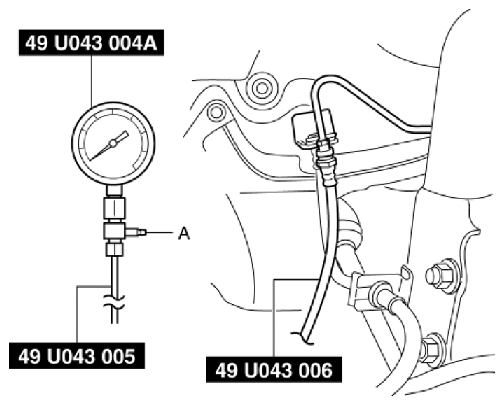

    Fig 2: Installing SST To Brake Pipe
    G10909665Courtesy of MAZDA MOTORS CORP.
  3. Bleed the brake line and the SSTs  of air. Bleed the air form the SSTs  using bleeder screw A.
  4. Install the pedal force gauge to the brake pedal.
  5. Connect the vacuum gauge to the vacuum line.
