DTC B00C1-93: Occupant Classification Sensor Communication Error: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- Occupant classification sensor communication error
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- Occupant classification sensor malfunction is detected
|
| Fail-safe |
- |
| Possible cause |
- Occupant classification sensor connector malfunction

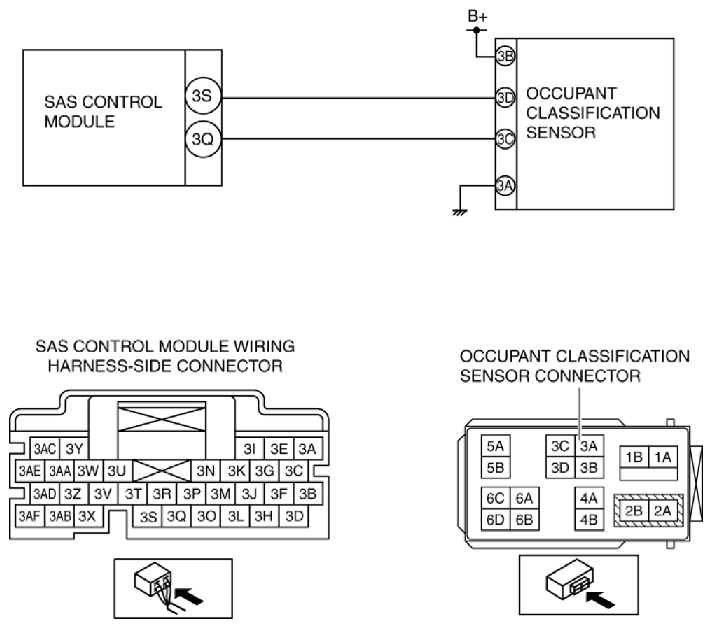

- Open circuit or short to ground or short to power supply in wiring harness between SAS control module and occupant classification sensor
- Occupant classification sensor malfunction
- SAS control module malfunction
|
Courtesy of MAZDA MOTORS CORP.
