DTC B1011-95: SAS Control Module Connectors Are Poorly Connected: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- SAS control module connectors are poorly connected
|
| Detection condition |
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

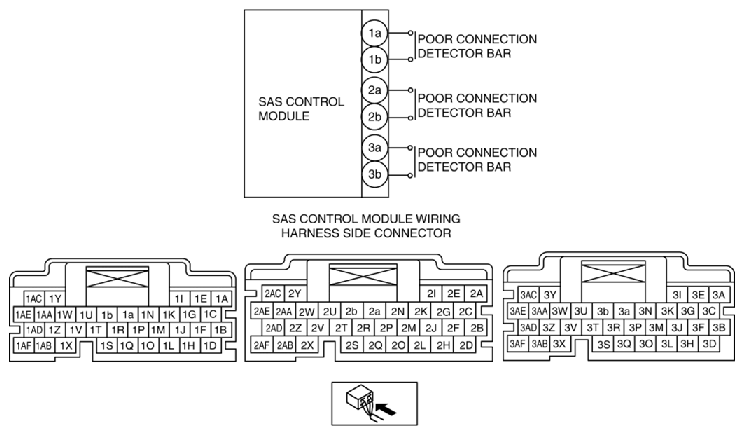

- No continuity between poorly connected detector bar terminals of the SAS control module, or the measurement value is out of the normal range even though there is continuity
|
| Fail-safe function |
Not applicable |
| Possible cause |
- SAS control module connectors are poorly connected
- SAS control module connector cover malfunction
- SAS control module connector malfunction
- SAS control module malfunction
|
|
|
