Airflow Mode Main Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

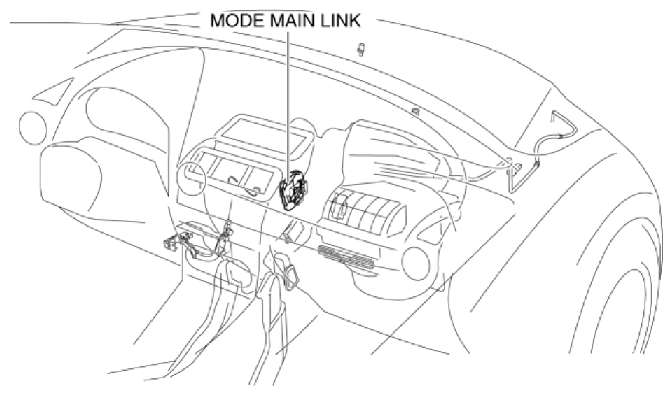

Fig 1: Identifying Airflow Mode Main Link
G10910232Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.
