A/C Compressor Pulley Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Set the SST (49 F034 207) as shown in the figure.

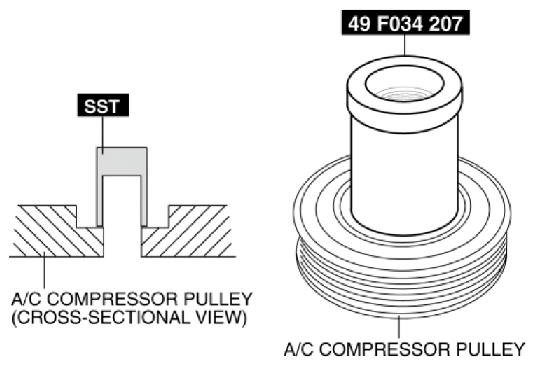

Fig 1: Identifying SST (49 F034 207)
Courtesy of MAZDA MOTORS CORP.
Install the inner wheel of the A/C compressor pulley using SST (49 0839 425C, 49 F034 207) to the compressor.

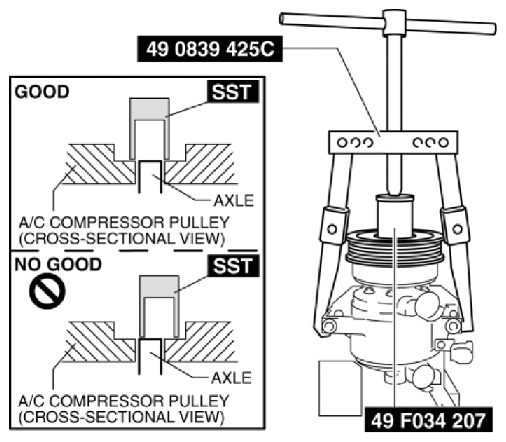

Fig 2: Installing Inner Wheel Of A/C Compressor Pulley

Courtesy of MAZDA MOTORS CORP.

CAUTION:

If the SST is not properly positioned when the A/C compressor pulley is press-fit, the A/C compressor axle will interfere with the SST, possibly damaging component parts. Verify the SST and axle are properly positioned and perform the procedure very carefully.
