Troubleshooting Procedure

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

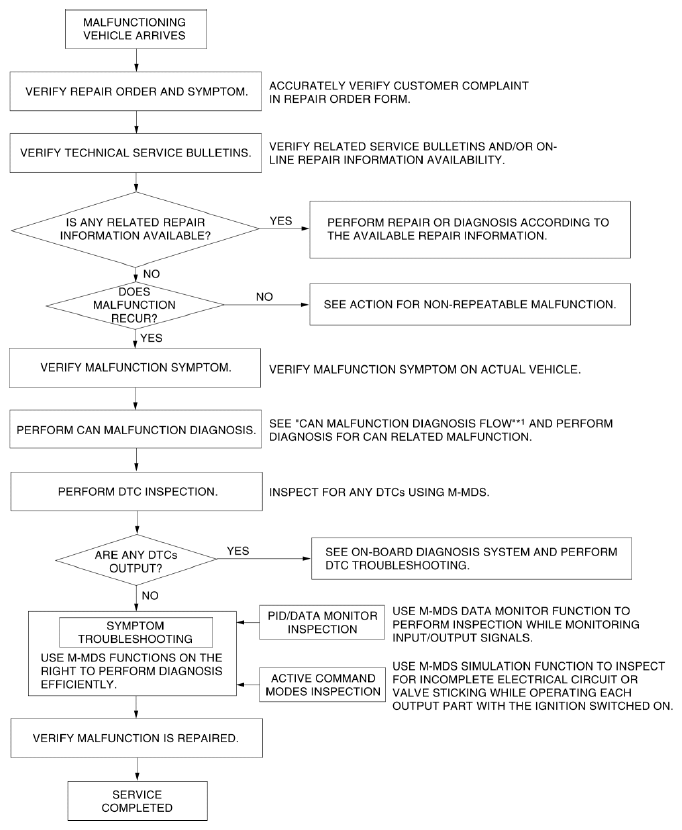

Fig 1: Adaptive Front Lighting System Control Module Troubleshooting Procedure Flowchart

Courtesy of MAZDA MOTORS CORP.

*1 (Refer to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
