Section 44 (On-Board Diagnostic - Adaptive Front Lighting System Control Module)
>>
On-Board Diagnostic Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On-Board Diagnostic Wiring Diagram
WARNING:
This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

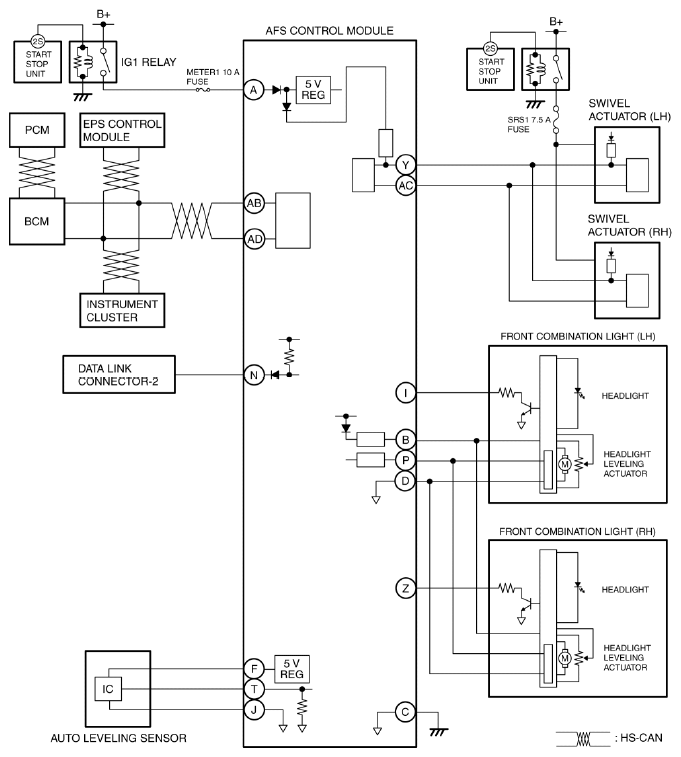

Fig 1: On-Board Diagnostic Wiring Diagram (Adaptive Front Lighting System Control Module)
Courtesy of MAZDA MOTORS CORP.
