DTC B113E-11: Liftgate Opener Switch Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Description	Liftgate opener switch circuit malfunction
Detection condition	BCM detects a short to ground in the liftgate opener switch circuit.
Fail-safe	Not applicable

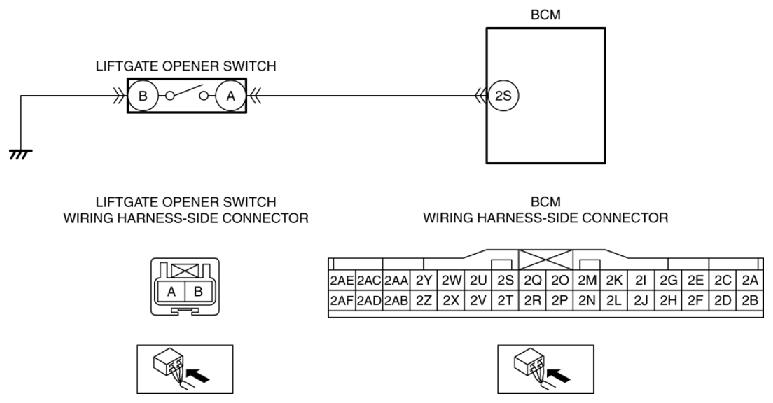

Possible cause	Liftgate opener switch connector or terminal malfunction Liftgate opener switch malfunction BCM connector or terminal malfunction Short to ground in wiring harness between liftgate opener switch terminal A and BCM terminal 2S BCM malfunction
