DTC B1178-11: Liftgate Latch Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
Liftgate latch switch circuit malfunction |
| Detection condition |
- BCM detects short to ground in liftgate latch switch circuit with the liftgate closed (liftgate latch switch off).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Liftgate latch and lock actuator connector or terminal malfunction
- Liftgate latch switch malfunction
- BCM connector or terminal malfunction

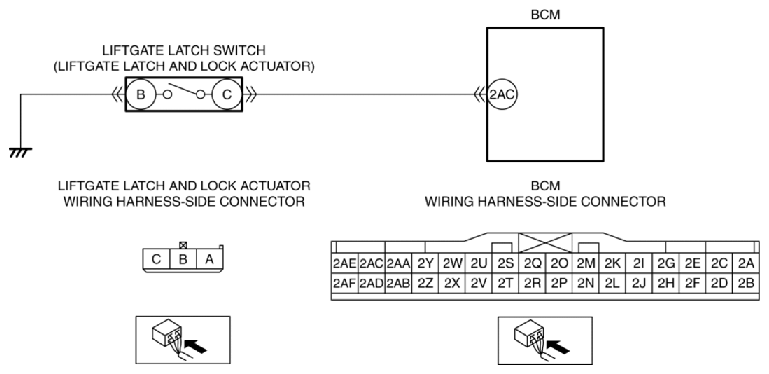

- Short to ground in wiring harness between liftgate latch and lock actuator terminal C and BCM terminal 2AC
- BCM malfunction
|
|
|
