Front Stabilizer Bracket Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- If the front stabilizer bracket cannot be installed by hand, install it using a vice.CAUTION:

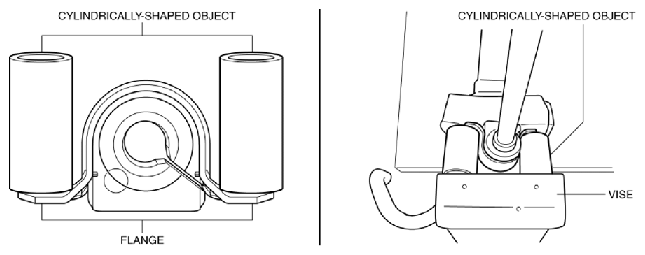

- The front stabilizer bracket may be deformed if it is installed using a vise. When installing the front stabilizer bracket using a vise, set the cylinder-shaped parts as shown in the figure so that pressure is applied to the front stabilizer bracket flange, and install the front stabilizer bracket to the front stabilizer bushing.
