Front Stabilizer Removal: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
  • Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.
  1. Remove the front ABS wheel-speed sensor from the steering knuckle.
    Fig 1: Identifying Front ABS Wheel-Speed Sensor Bolt With Torque Specification
    G10909334Courtesy of MAZDA MOTORS CORP.
  2. Remove the front ABS wheel-speed sensor wiring harness from the front shock absorber and set it aside so that it does not interfere with the servicing.

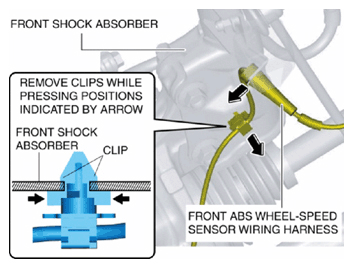

    Fig 2: Removing Front ABS Wheel-Speed Sensor Wiring Harness From Front Shock Absorber
    G10909335Courtesy of MAZDA MOTORS CORP.
  3. Remove the front stabilizer control link.

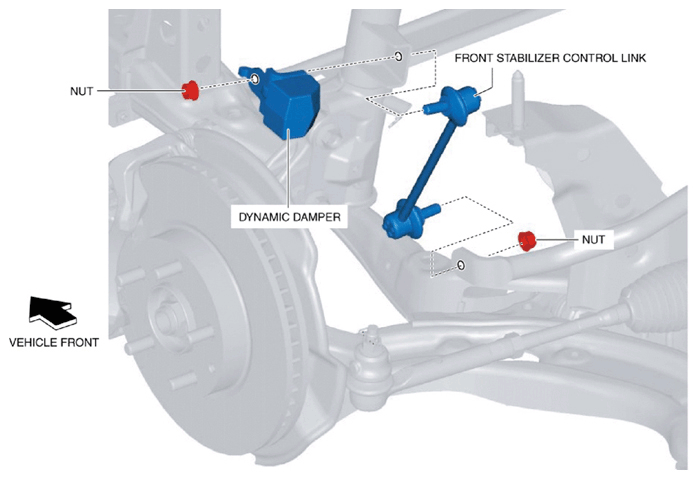

    Fig 3: Removing Front Stabilizer Control Link
    G10909336Courtesy of MAZDA MOTORS CORP.
  4. Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  5. Disconnect the intermediate shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  6. Remove the following parts.
    1. Front splash shield (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
    2. Front under cover No. 2 (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
    3. Front under cover No. 1 (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
    4. Insulator (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
    5. Front crossmember component (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the figure.

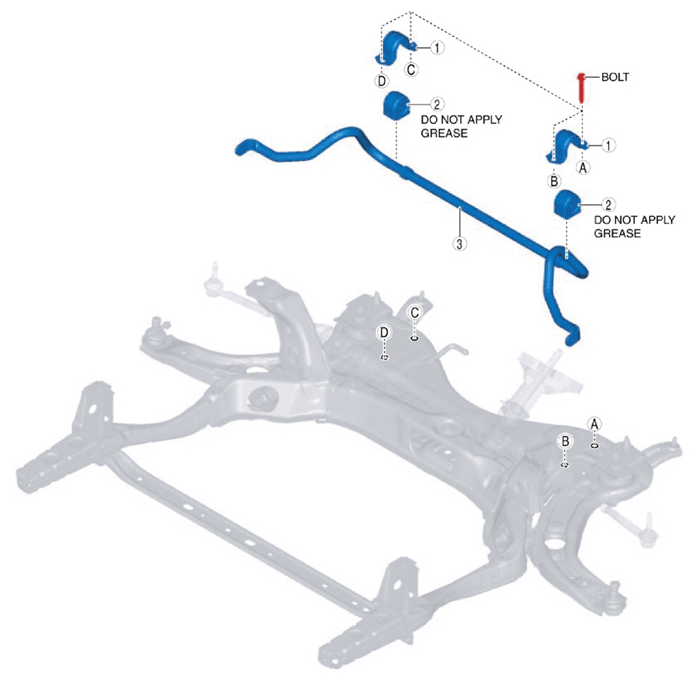

    Fig 4: Front Stabilizer Bracket And Bushing
    G10909337Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Front stabilizer bracket
    (See Front Stabilizer Bracket Removal Note .)
    2 Front stabilizer bushing
    3 Front stabilizer
