Drain Hose Installation Note

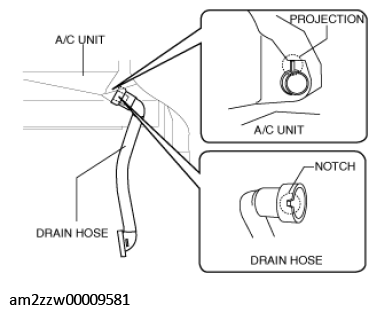

  1. Align the notch of the drain hose with the projection of the A/C unit, and install it.
    G11431279Courtesy of MAZDA MOTORS CORP.
