Front Heat Duct Removal/Installation: Driver-side

  1. Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)

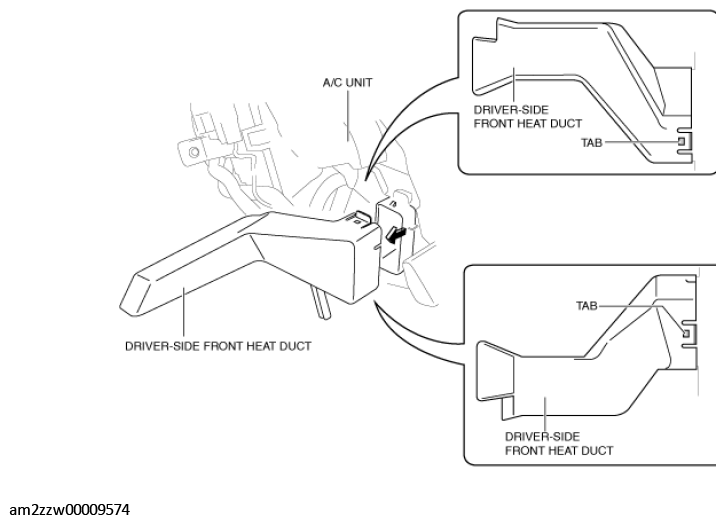

  2. Detach the tab.
    G11431312Courtesy of MAZDA MOTORS CORP.
  3. Remove the driver-side front heat duct.
  4. Install in the reverse order of removal.
