Resistor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

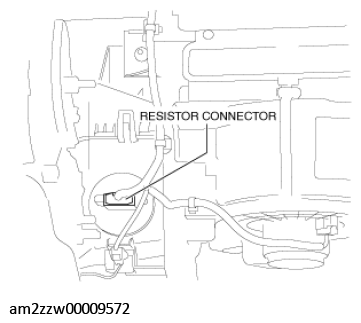

  3. Disconnect the resistor connector.
    G11431341Courtesy of MAZDA MOTORS CORP.

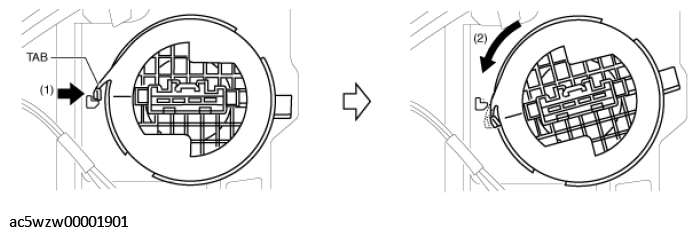

  4. Rotate the resistor (2) while pressing the tab (1).
    G11431342Courtesy of MAZDA MOTORS CORP.
  5. Remove the resistor.
    G11431343Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
