Front Lower Arm Inspection: Notes
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
- Remove the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Inspect the front lower arm for bending or damage, and the front lower arm ball joint for excessive looseness.
- If there is any malfunction, replace the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Rotate the front lower arm ball joint 10 times.

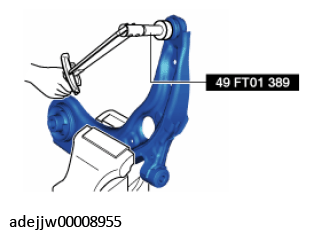

- Install the SST to the front lower arm ball joint stud, and measure the front lower arm ball joint initial torque and rotational torque using a torque wrench.
