Keyless Beeper Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the cowl grille. (Refer to COWL GRILLE REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

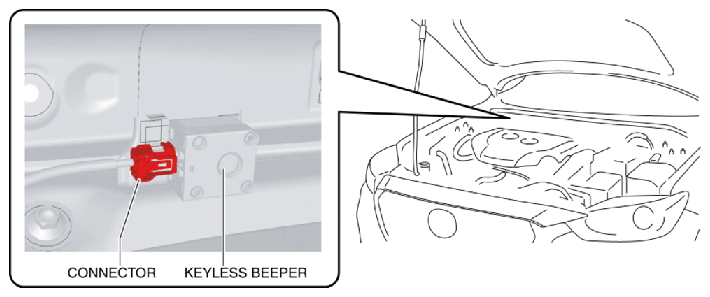

    Fig 1: Disconnecting Keyless Beeper Connector
    G10914448Courtesy of MAZDA MOTORS CORP.
  4. Pull the keyless beeper in the direction of the arrow (2) shown in the figure while pressing the keyless beeper tabs in the direction of the arrow (1) shown in the figure, detach the keyless beeper tabs and bracket, and then remove the keyless beeper from the bracket.
    Fig 2: Removing Keyless Beeper From Bracket
    G10914449Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
