Liftgate Lock Striker Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Pull the lock bezel in the direction of the arrow shown in the figure and detach the lock bezel tabs from the trunk end trim.

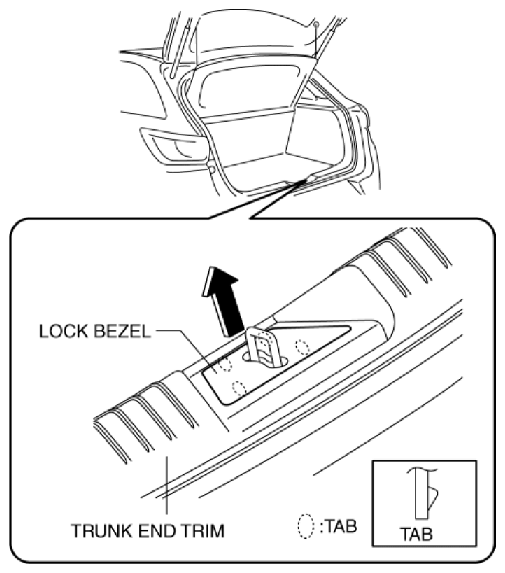

Fig 1: Detaching Lock Bezel Tabs From Trunk End Trim
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

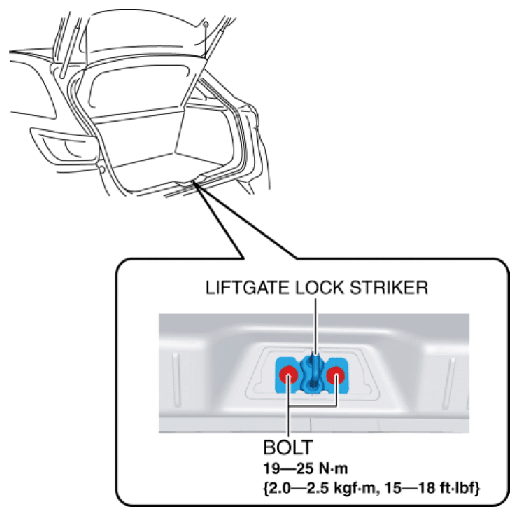

Fig 2: Removing Liftgate Lock Striker Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate lock striker.
Install in the reverse order of removal.
