Request Switch Inspection: Liftgate

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the request switch. (Refer to REQUEST SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Request Switch (Liftgate) Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.

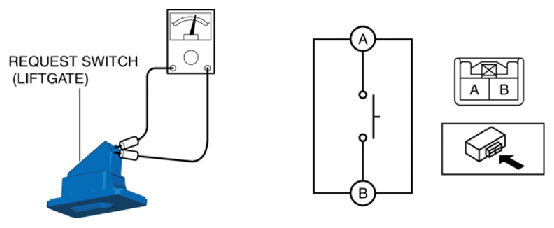

Fig 2: Inspecting Request Switch (Liftgate) Connector Terminals

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the table, replace the request switch. (Refer to REQUEST SWITCH REMOVAL/INSTALLATION .)
