Body Control Module (BCM) Bracket Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
- Front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
- Adaptive front lighting system (AFS) control module (with adaptive front lighting system (AFS)) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION .)
- BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)
Remove the bolt.

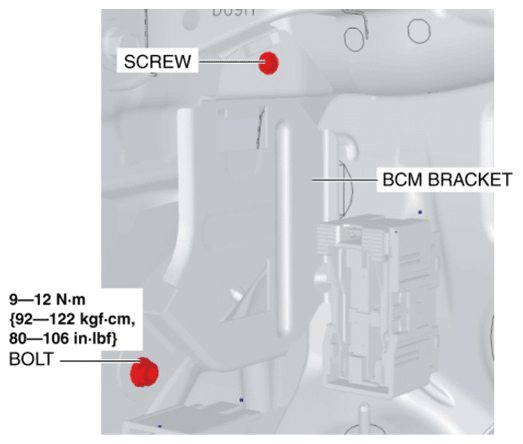

Fig 1: Identifying BCM Bracket Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Remove the vehicle wiring harness clip.

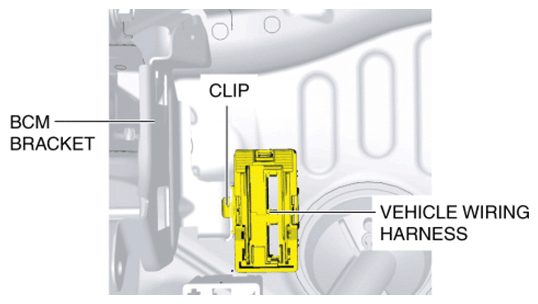

Fig 2: Identifying Vehicle Wiring Harness Clip
Courtesy of MAZDA MOTORS CORP.
Remove the BCM bracket.
Install in the reverse order of removal.
