DTC U0231-68: Communication Error With Auto Light Sensor/Rain Sensor: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
Communication error with auto light sensor/rain sensor |
| Detection condition |
- BCM could not receive the signals from the auto light sensor/rain sensor for 5 s or more
with the ignition switched ON (engine off or on).
|
| Fail-safe |
Auto light system
- Continue the controls prior to the auto light malfunction detection.
Auto wiper system
- Continue the controls prior to the windshield wiper malfunction detection.
|
| Possible cause |
- Auto light sensor/rain sensor connector or terminal malfunction
- BCM connector or terminal malfunction

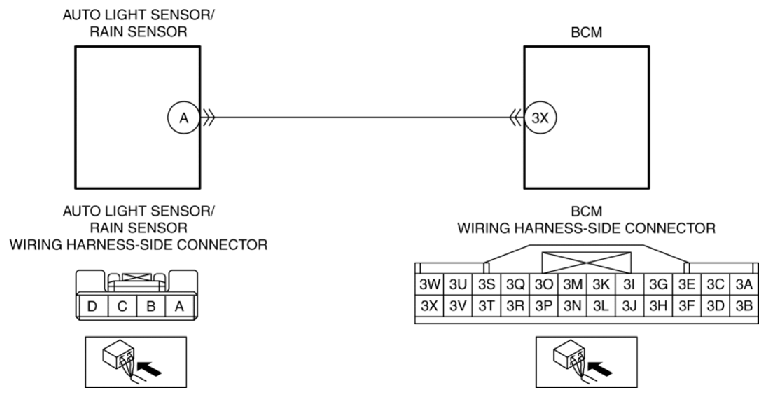

- Short to ground in wiring harness between auto light sensor/rain sensor terminal A and BCM terminal 3X
- Short to power supply in wiring harness between auto light sensor/rain sensor terminal A and BCM terminal 3X
- Open circuit in wiring harness between auto light sensor/rain sensor terminal A and BCM terminal 3X
- Auto light sensor/rain sensor malfunction
- BCM malfunction
|
|
|
