Washer Fluid-Level Sensor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
Remove the front bumper. (See FRONT BUMPER REMOVAL ) (See FRONT BUMPER INSTALLATION )
Remove the washer tank from the body. (See WASHER TANK REMOVAL/INSTALLATION .)

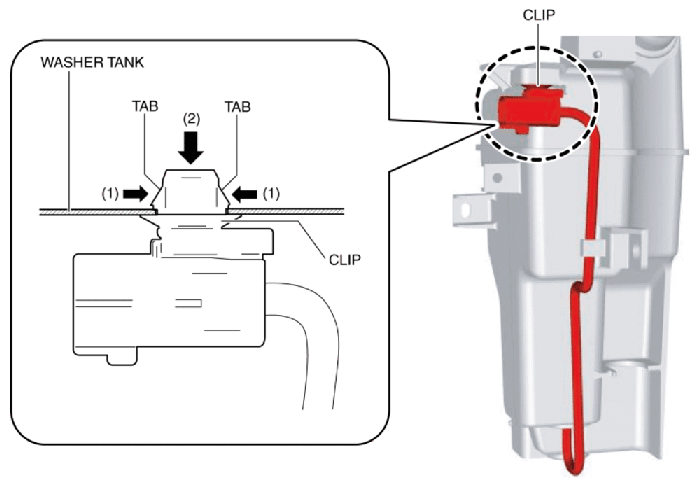

Press out the clip in the direction of arrow (2) shown in the figure while pressing the clip tabs in the direction of arrows (1) shown in the figure, and remove the clip from the washer tank.

Fig 1: Removing Clip From Washer Tank
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.

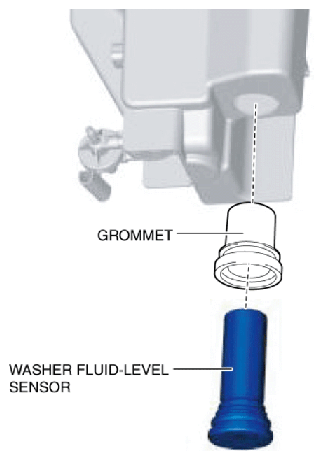

Fig 2: Identifying Washer Fluid-Level Sensor And Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
