Engine Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When the transaxle is installed, do not suspend the engine. Otherwise, the SST installation area of the cylinder head may be damaged due to excess weight. Only suspend the engine after separating the engine and transaxle.
  • Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
  1. To enable to install the SST  , disconnect the clip shown in the figure and set the wiring harness aside.

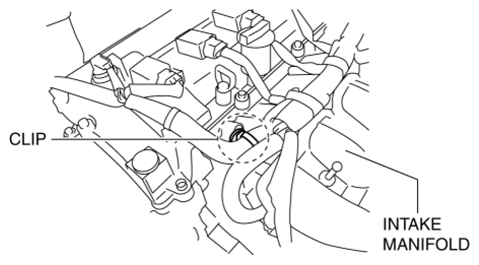

    Fig 1: Identifying Intake Manifold And Clip
    G10968715Courtesy of MAZDA
  2. Install the SST  and the following bolt to the position shown in the figure.

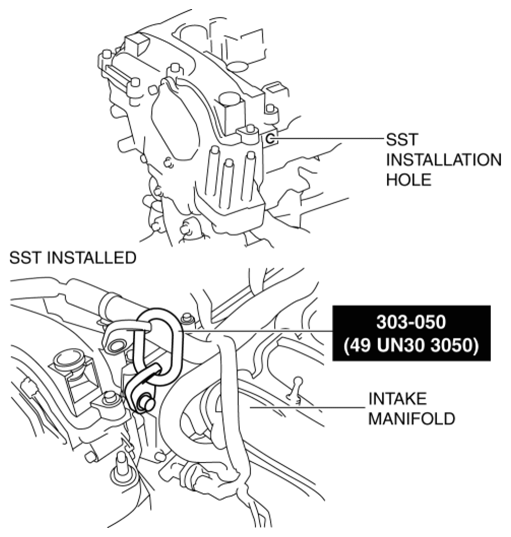

    Fig 2: Identifying SST Installation Hole
    G10900518Courtesy of MAZDA

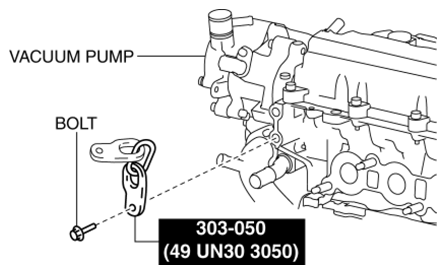

    Fig 3: Installing SST
    G10900519Courtesy of MAZDA

    Bolt:

    • part number 99794 1025 or an M10 x 1.25, length 25 mm {0.98 in}

      Tightening torque

    • 38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
  3. Engage the hooks of the SST (49 L017 5A0)  to the SST (49 UN30 3050)  .

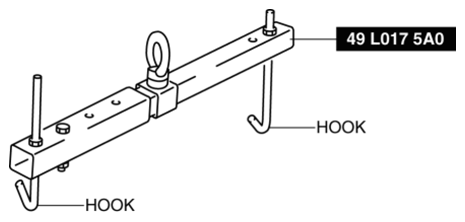

    Fig 4: Engaging Hooks
    G10968716Courtesy of MAZDA
    CAUTION:
    • Do not lift up the engine.
  4. To ensure the safety of the work (control engine and transaxle sway), set a hoist as shown in the figure.

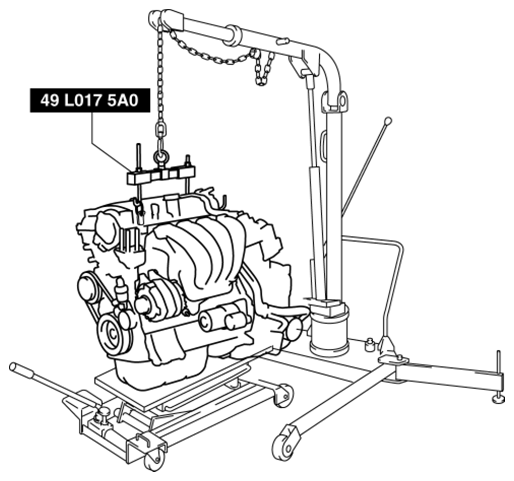

    Fig 5: Lifting Engine
    G10968717Courtesy of MAZDA
  5. Remove the insulator shown in the figure.

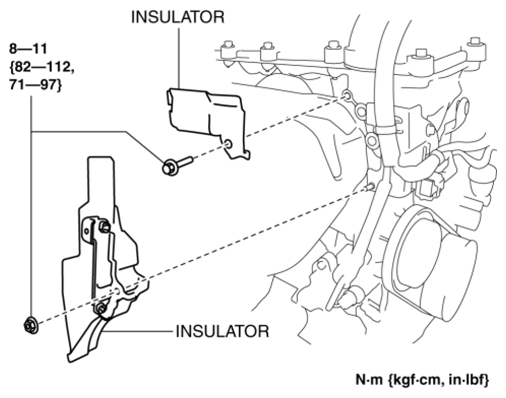

    Fig 6: Removing Insulator
    G10968718Courtesy of MAZDA
  6. Remove the exhaust system. (Refer to EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  7. Remove the bolts in the order shown in the figure, then remove the exhaust manifold bracket.
    Fig 7: Removing Exhaust Manifold Bracket
    G10968719Courtesy of MAZDA
    • When installing, install the exhaust manifold bracket using the following procedure:
      • Temporarily tighten the exhaust manifold bracket installation bolts in the order as shown in the figure.

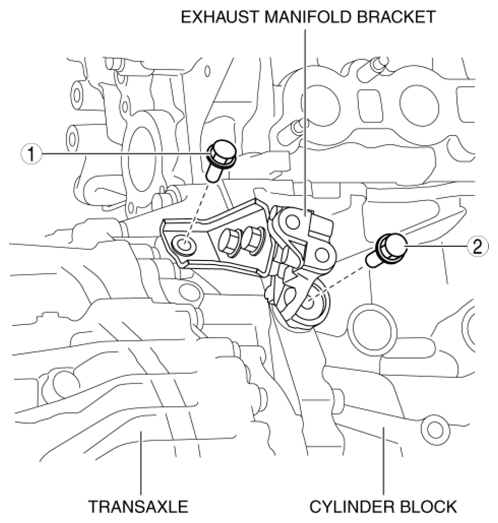

        Fig 8: Exhaust Manifold Bracket Installation Bolts Tightening Sequence
        G10968720Courtesy of MAZDA
      • Loosen the bolt shown in the figure until it is no longer seated on the surface.

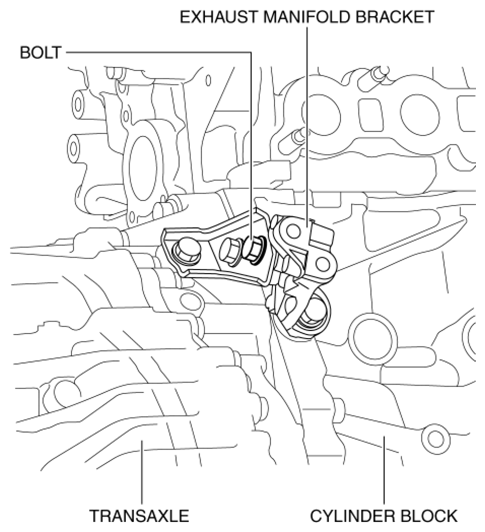

        Fig 9: Identifying Exhaust Manifold Bracket And Bolt
        G10968721Courtesy of MAZDA
      • Tighten the bolt in the order shown in the figure.

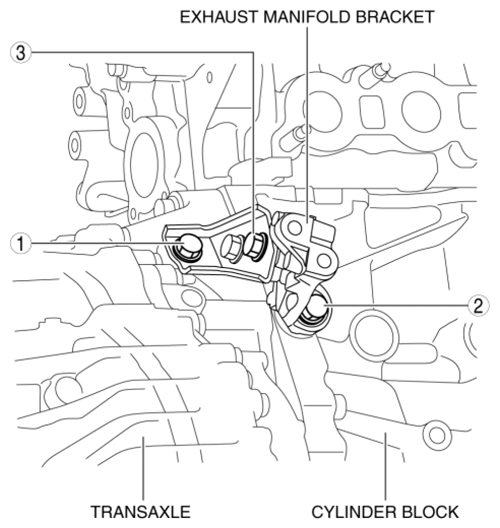

        Fig 10: Exhaust Manifold Bracket Bolts Tightening Sequence
        G10968722Courtesy of MAZDA

      Tightening torque

    • 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
  8. Remove the bracket No. 1 (drive shaft bracket). (Refer to FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  9. Remove the transfer bracket and transfer. (4WD) (Refer to TRANSFER REMOVAL/INSTALLATION [EW6AX-EL] .)
  10. Remove the starter. (Refer to STARTER REMOVAL/INSTALLATION .)
  11. Fix the drive plate using the crankshaft pulley lock bolt.
  12. Remove the torque converter installation nut from the starter installation hole. (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] (2WD).) (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] (4WD).)
  13. Disconnect the engine and transaxle, and lower only the engine from the engine lifter. (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] (2WD).) (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] (4WD).)
  14. Remove the generator. (Refer to GENERATOR REMOVAL/INSTALLATION .)
  15. Remove the intake-air system. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  16. Remove the fuel injectors. (Refer to FUEL INJECTOR REMOVAL/INSTALLATION .)
  17. Remove the camshaft position (CMP) sensor. (Refer to CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
  18. Remove the vacuum pump. (Refer to VACUUM PUMP REMOVAL/INSTALLATION .)
  19. Remove the high pressure fuel pump and rear housing. (Refer to HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)
  20. Remove the oil filter. (Refer to OIL FILTER REPLACEMENT .)
  21. Remove the oil cooler. (if equipped) (Refer to OIL COOLER REMOVAL/INSTALLATION .)
  22. Remove the engine oil solenoid valve. (Refer to ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
  23. Remove the crankshaft position (CKP) sensor. (Refer to CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
  24. Remove the ignition coil/ion sensors. (Refer to IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
  25. Remove the wiring harness bracket shown in the figure.

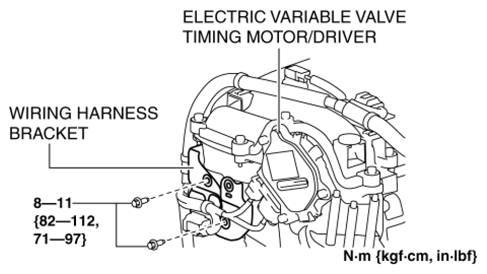

    Fig 11: Removing Wiring Harness Bracket
    G10968723Courtesy of MAZDA
  26. Remove the emission harness.
  27. Remove the water pump drive belt. (Refer to DRIVE BELT REMOVAL/INSTALLATION .)
  28. Remove in the order indicated in the table.
  29. Assemble in the reverse order of disassembly.

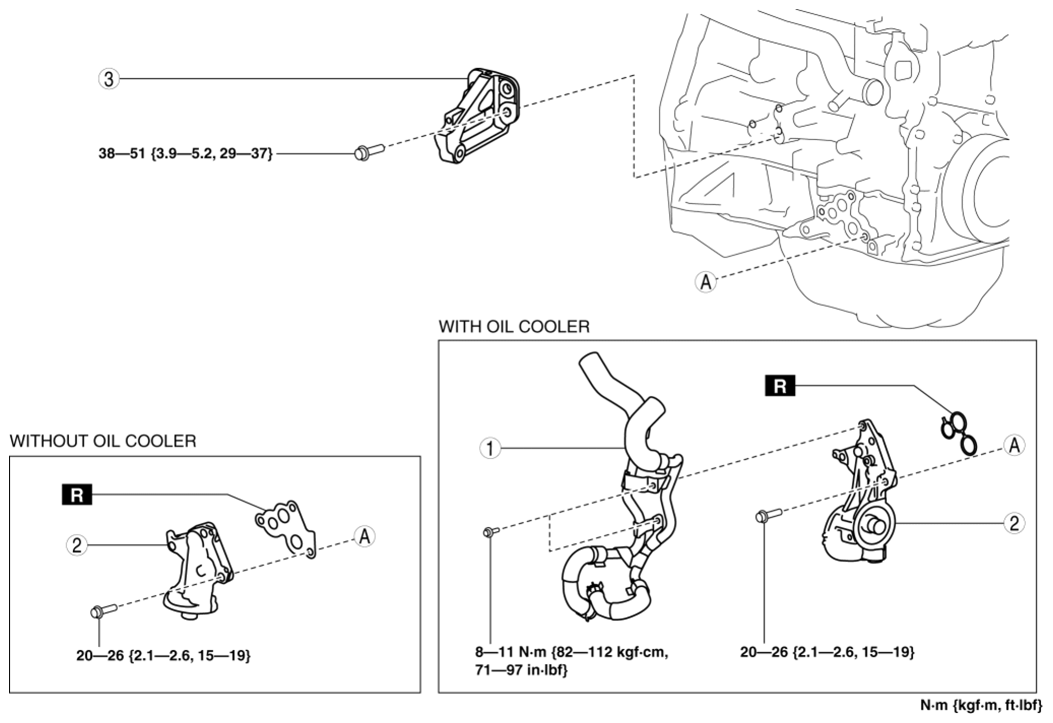

    Fig 12: Identifying Oil Cooler Water Pipe Components With Torque Specification
    G10968724Courtesy of MAZDA
    COMPONENT DESCRIPTION

    1 Oil cooler water pipe component (with oil cooler)
    (See Oil Cooler Water Pipe Component Installation Note .)
    2 Oil filter body
    (See Oil Filter Body Installation Note .)
    3 Exhaust manifold bracket (2WD)
    (See Exhaust Manifold Bracket Installation Note .)
