Telematics Communication Unit Installation Note

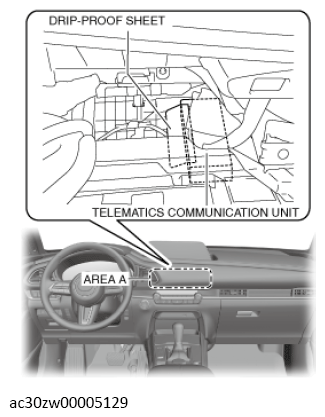

  1. Verify from area A that the drip-proof sheet of the telematics communication unit is not everted.
    G13750859Courtesy of MAZDA MOTORS CORP.
  2. If the drip-proof sheet is everted, fix it so that it is not everted as shown in the figure.
