Quick Release Connector (Fuel System) Removal/Installation: Notes
Replacement Part
PART DESCRIPTION
| Retainer Quantity: 1 Location of use: Quick Release Connector (Type B) |
Oil and Chemical Type
OIL AND CHEMICAL TYPE DESCRIPTION
| Engine oil Type: Recommended oil |
WARNING:
- Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
- Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "FUEL LINE SAFETY PROCEDURE " to prevent the fuel from spraying.
- Fuel may cause irritation if it comes in contact with skin and eyes.
- If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
- A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.
- Connect a ground wire to the oil-resistant fuel hose for draining fuel and the vehicle because the oil-resistant fuel hose for draining fuel may become electrically charged.
CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
Quick Release Connector Type
CAUTION:
- Verify the type and location, and install/remove properly.

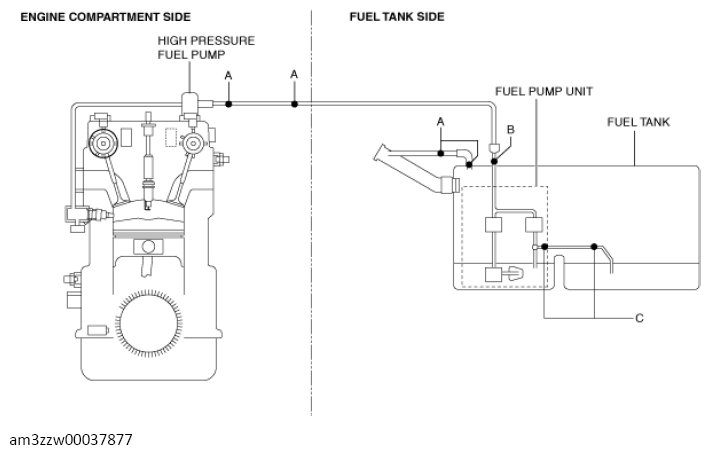

U.S.A. and CANADA

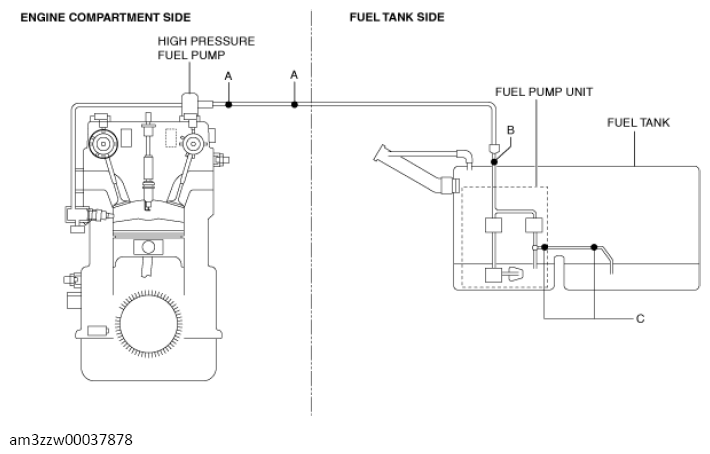

Except U.S.A. and CANADA
