Weatherstrip Installation Note

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

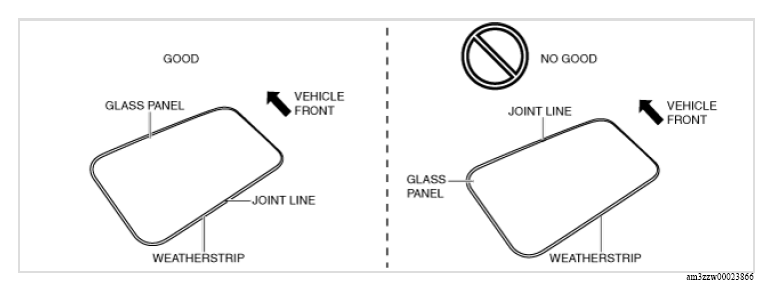

  1. Install the weatherstrip to the glass panel with the joint part of the weatherstrip assembled to the vehicle rear side.
    G13179198Courtesy of MAZDA MOTORS CORP.
