Guide Plate Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When assembling the guide plates to the front brake mounting support, securely assemble them on the leading side and trailing side to each position shown in the illustration. If the guide plates are assembled to the incorrect positions, it could become a source of noise.

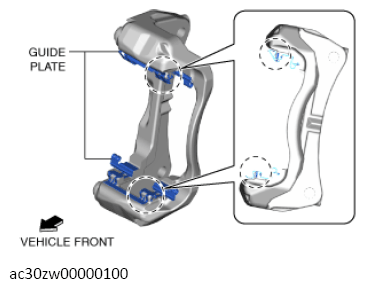

- Install the guide plate as shown in the illustration.

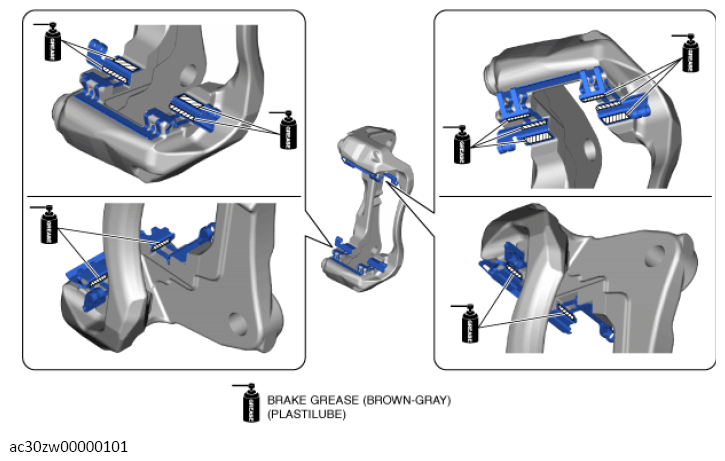

- Apply grease to the locations shown in the illustration.
