A/C Unit Disassembly/Assembly (Us): Notes

Replacement Part

1. Remove the A/C unit short-cord. (See A/C UNIT SHORT-CORD REMOVAL/INSTALLATION (US) .)
2. Disassemble in the order indicated in the table.
   CAUTION:

   • If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

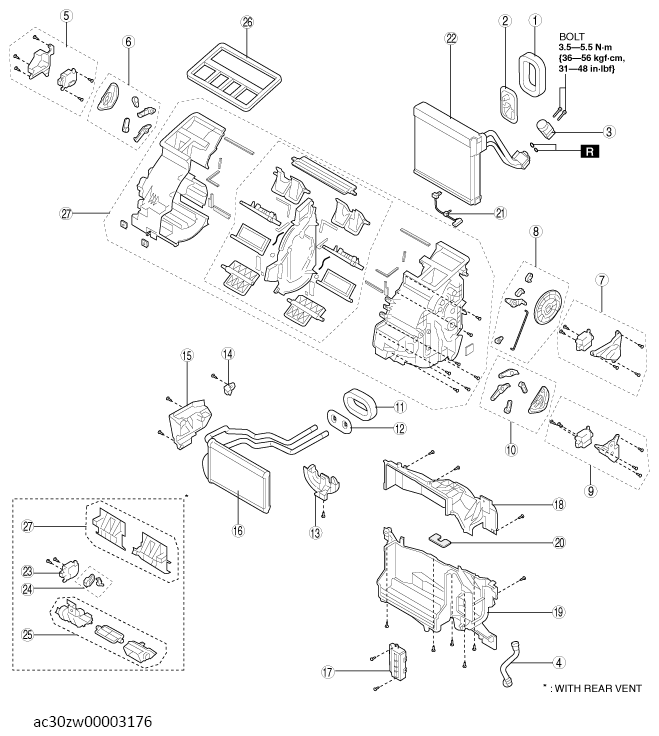

   Fig 1: A/C Unit Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

   X: Applicable-: Not applicable

   PART DESCRIPTION



   Step	Part name	Disassembly/assembly of main parts
   		Heater core	Evaporator temperature sensor	Evaporator
   1	Polyurethane foam	-	X	X
   2	Rubber	-	X	X
   3	Expansion valve	-	-	X
   4	Drain hose	-	-	-
   5	Driver-side air mix actuator (full-auto air conditioner)	-	-	-
   6	Driver-side air mix link (full-auto air conditioner)	-	-	-
   7	Airflow mode actuator	-	-	-
   8	Airflow mode link set	-	-	-
   9	Passenger-side air mix actuator	-	-	-
   10	Passenger-side air mix link	-	-	-
   11	Polyurethane foam	X	X	X
   12	Rubber	X	X	X
   13	Plate (1)	X	X	X
   14	Plate (2)	X	X	X
   15	Cover	X	X	X
   16	Heater core	X	X	X
   17	Dash-electrical supply unit	-	-	-
   18	A/C case (1)	-	X	X
   19	A/C case (2)	-	X	X
   20	Polyurethane foam	-	-	-
   21	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .)	-	X	X
   22	Evaporator	-	-	X
   23	Rear vent actuator (with rear vent)	-	-	-
   24	Rear vent link set (with rear vent)	-	-	-
   25	Door damper (with rear vent)	-	-	-
   26	Adhesive polyurethane	-	-	-
   27	A/C case assembly	-	-	-

3. Assemble in the reverse order of disassembly.
