Tweeter Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

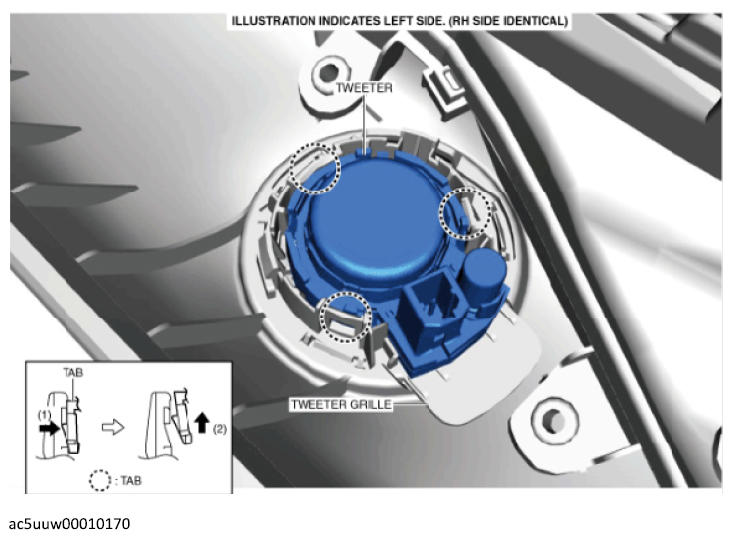

  3. Move the tabs in the order of arrows (1) and (2) shown in the figure and detach the tabs from the tweeter grille.
    G12189745Courtesy of MAZDA MOTORS CORP.
  4. Remove the tweeter.
  5. Install in the reverse order of removal.
