Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

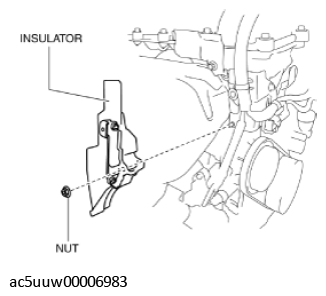

Remove the insulator shown in the figure.

Fig 1: Removing Insulator With Nut
Courtesy of MAZDA MOTORS CORP.

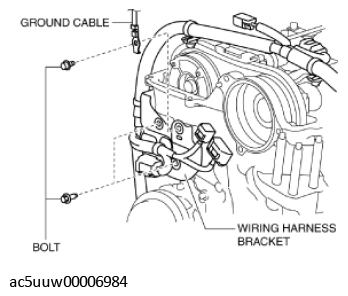

Set the ground cable and wiring harness bracket shown in the figure aside.

Fig 2: Installing Ground Cable And Wiring Harness Bracket With Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the engine front cover installation bolts.
Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
- Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
- Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.
Fig 3: Removing Engine Front Cover Sealant Using Screwdriver (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 4: Removing Engine Front Cover Sealant Using Screwdriver (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
