DTC B13FE:14 [Front Body Control Module (FBCM)]: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DTC B13FE:14 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Headlight LO relay No. 1 circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects an open circuit or short to ground in the headlight LO relay No. 1 circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Headlight LO relay No. 1 malfunction
- Front body control module (FBCM) connector or terminal malfunction

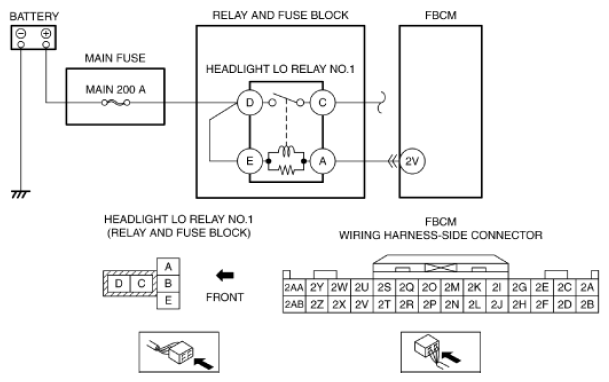

- Short to ground in the wiring harness between headlight LO relay No. 1 terminal A and front body control module (FBCM) terminal 2V
- Open circuit in the wiring harness between headlight LO relay No. 1 terminal A and front body control module (FBCM) terminal 2V
- Front body control module (FBCM) malfunction
|
|
|
