DTC U3006:62 [Front Body Control Module (FBCM)]: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DTC U3006:62 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Front body control module (FBCM) power supply voltage mismatch |
| Detection condition |
- Front body control module (FBCM) terminal 1A, 1B, 3K, and 3L voltages of 2 V or more lower than the voltage of terminal 2A are detected for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front body control module (FBCM) connector or terminal malfunction
- Front body control module (FBCM) power supply circuit malfunction
- HAZARD 25 A fuse malfunction
- MAIN 200 A fuse malfunction

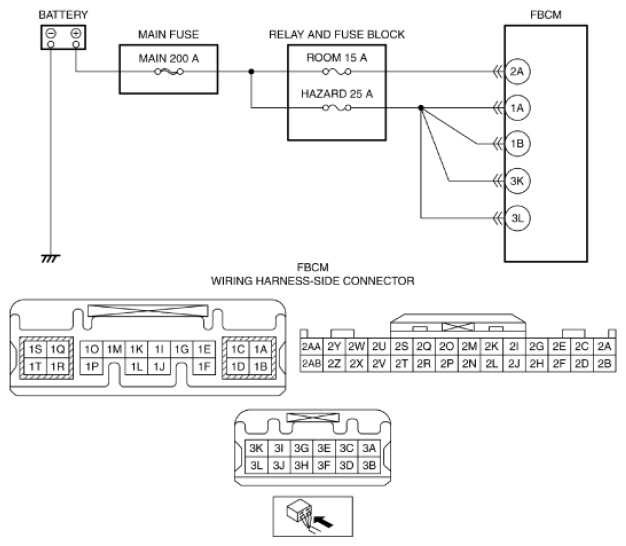

- Open circuit in wiring harness between the following terminals:
- Battery positive terminal-Front body control module (FBCM) terminal 1A
- Battery positive terminal-Front body control module (FBCM) terminal 1B
- Battery positive terminal-Front body control module (FBCM) terminal 3K
- Battery positive terminal-Front body control module (FBCM) terminal 3L
- Front body control module (FBCM) malfunction
|
|
|
