Generator Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

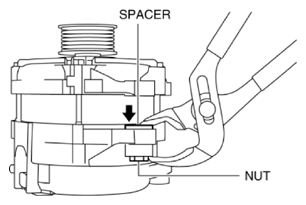

Fig 1: Grasping Spacer In Bolt Installation Hole Using Pliers
Courtesy of MAZDA MOTORS CORP.
Temporarily install the generator to the engine with the bolt C.

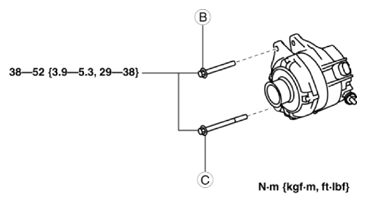

Fig 2: Identifying Generator Installation Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Align the generator fixing hole with the engine side hole, then temporarily tighten the generator installation bolt B.
Securely tighten the generator installation bolts in the order of B, C.
