Commander Switch Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

After installing the commander switch to the panel, affix tape to the positions shown in the figure.

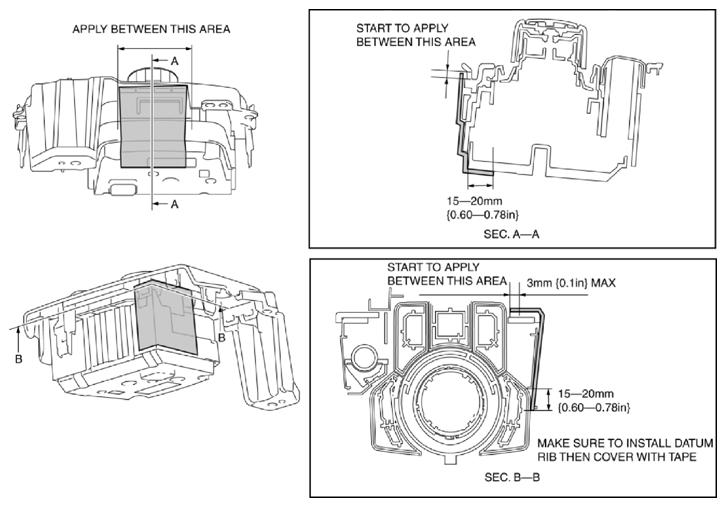

Fig 1: Installing Commander Switch To Panel

Courtesy of MAZDA MOTORS CORP.
