Short-cord Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When assembling the short-cord, press it into the groove of the CMU.

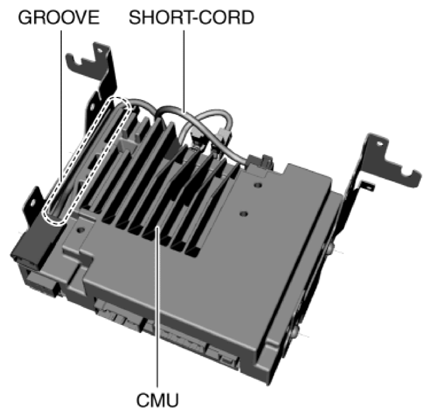

Fig 1: Identifying Short-Cord Assembly

Courtesy of MAZDA MOTORS CORP.
