Center Display Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    4. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove the bolts.

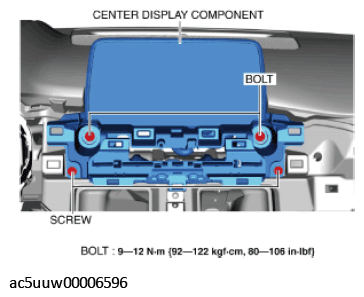

    Fig 1: Locating Center Display Component Bolt With Torque Specifications
    G11426057Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Pull the center display component in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and pins.

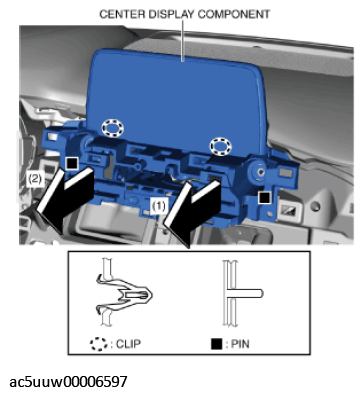

    Fig 2: Pulling Center Display Component
    G11426058Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connectors.

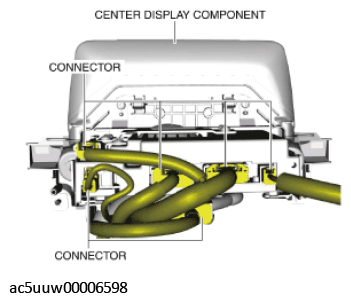

    Fig 3: Locating Center Display Connectors
    G11426059Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the connectors.

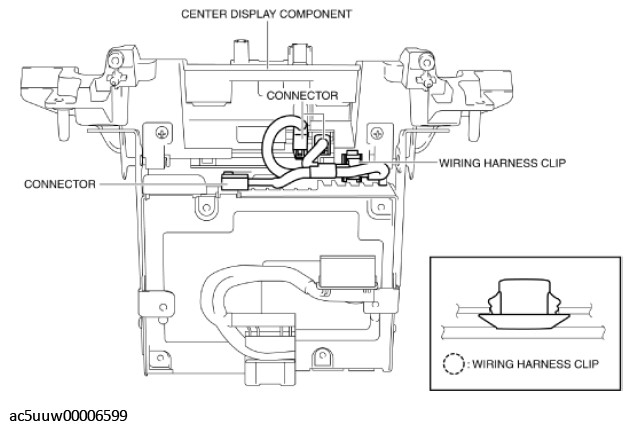

    Fig 4: Disconnecting Center Display Connectors
    G11426060Courtesy of MAZDA MOTORS CORP.
  8. Remove the wiring harness clip.
  9. Remove the screws.

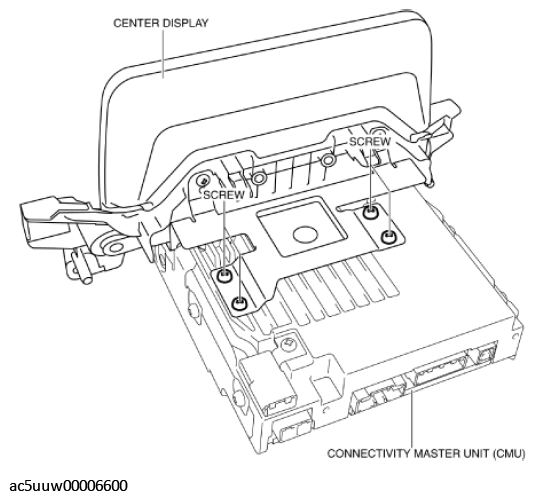

    Fig 5: Removing Center Display Wiring Harness Clip
    G11426061Courtesy of MAZDA MOTORS CORP.
  10. Remove the center display from the connectivity master unit (CMU).
  11. Install in the reverse order of removal.
