Light Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the light switch, it is necessary to turn the steering wheel. If the ignition is switched off with the driver's door closed, the steering wheel is locked. Perform Steps 1- 3 to prevent the steering wheel from being locked.

Switch the ignition ON (engine off or on).
Open the driver's door.
Switch the ignition off.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Rotate the steering wheel until the service hole is visible in the position shown in the figure.

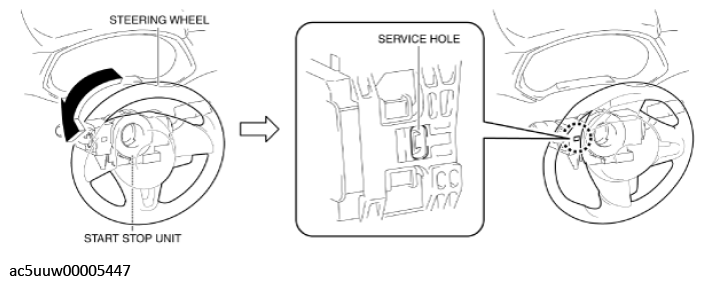

Fig 1: Rotating Steering Wheel
Courtesy of MAZDA MOTORS CORP.
While pressing the light switch tab in the direction of arrow (1) shown in the figure, pull out the light switch in the direction of arrow (2) shown in the figure, and detach the light switch tab from the start stop unit.

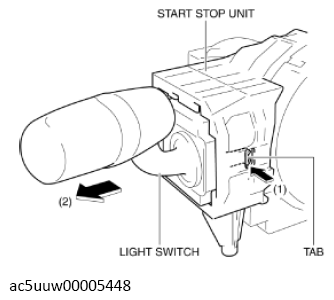

Fig 2: Pulling Out Light Switch
Courtesy of MAZDA MOTORS CORP.
Remove the light switch.
Install in the reverse order of removal.
